气动插口开箱机XTDK-10

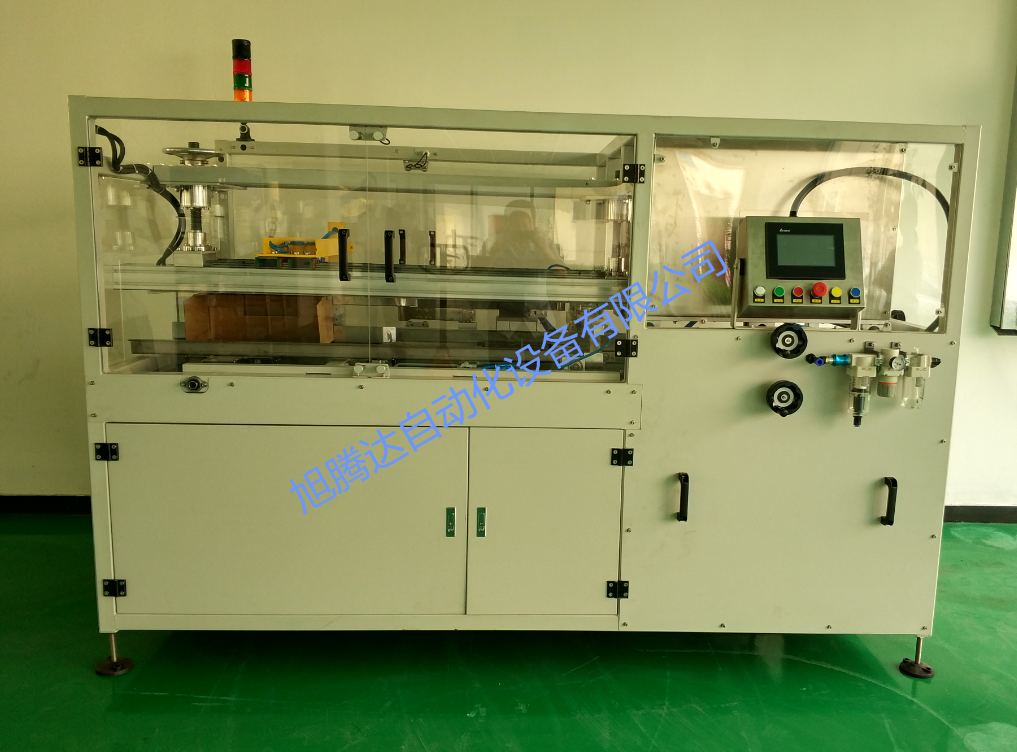

插口开箱机XTK-Z10 Spigot box forming machine XTK-Z10
主要特点Main Characteristics：
插口开箱机XTK-Z10，纸箱储存采用卧式方式，可不停机随时补充纸箱，不同尺寸纸箱由手把操作、调整迅速简单。此机结构设计一次完成纸箱吸箱、开箱、成型、折底、插底。
It is a kind of horizontal box forming machine. Refilling the box at any time without stop the machine. Different size boxes are operated by hand handle and adjusted quickly and easily. The machine structure design completes the box suction, unpacking, forming, folding bottom and inserting bottom.
主要技术参数Main Technical Specification
|
机器型号Type |
XLK-Z10 |
|
纸箱范围the range of the box size |
L200-450 *W150-400*H120-350MM |
|
使用电压Voltage & Frequency |
220V、50HZ |
|
功率power |
1KW |
|
开箱速度box forming speed |
15箱/分,15boxes/min |
|
台面高度the table height |
950mm |
|
纸箱存储量the storage of the box |
70-100个（以纸箱厚度计depending on carton thickness） |
|
适用气压air pressure/空气消耗量air consumption |
5kg.f/cm100nl/min |
|
机械尺寸Size |
L2500*W1200*H1500mm |
|
机器重量Weight |
800kg |
